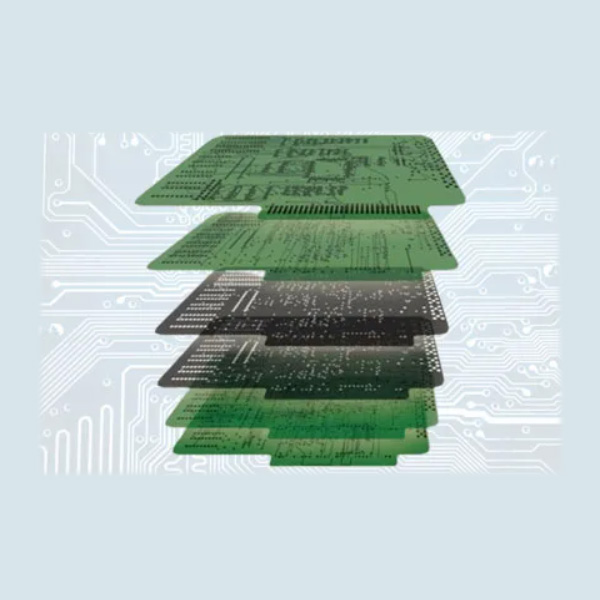

Multilayer

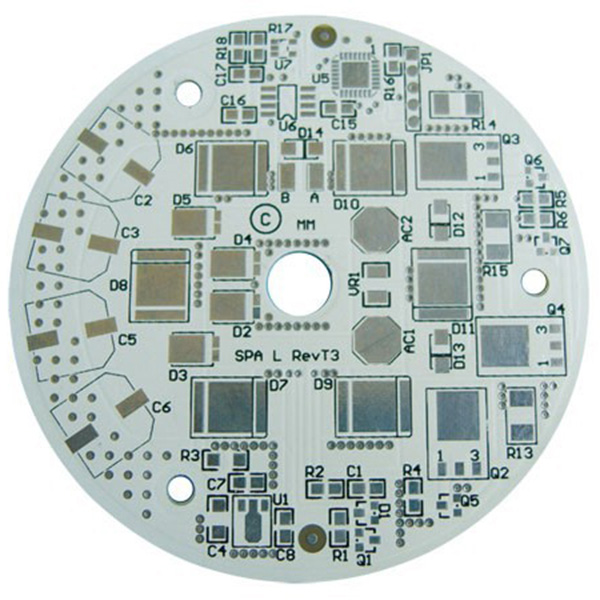

Aluminium PCB

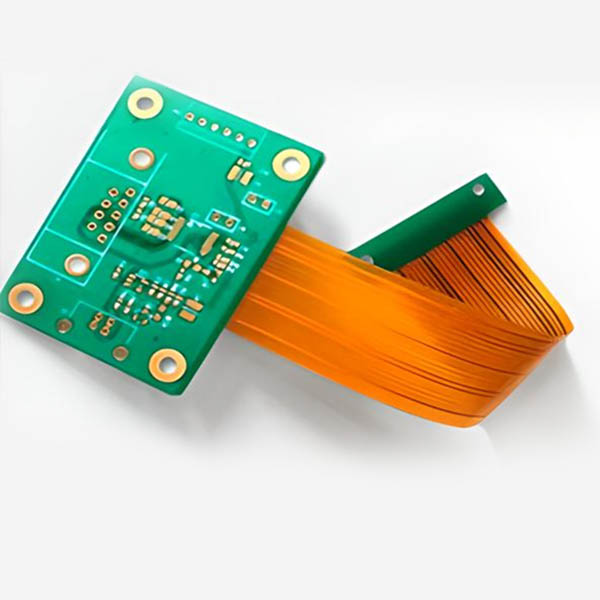

Rigid, Flex, Flex-rigid

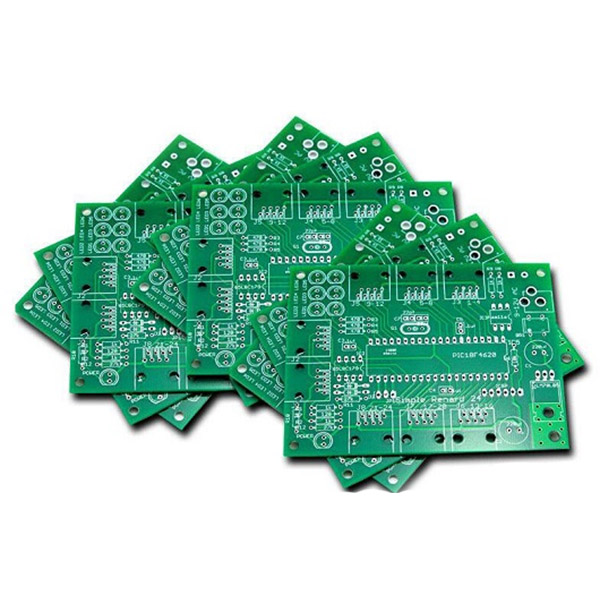

- PCB Manufacturing Technical Capabilities
Technical Capabilities
Specification | Value |
---|---|
Maximum no. of Layers | 16 |
Maximum Board Thickness | 3.2 |
Minimum Finished Board Thickness | 0.20 (No HAL / Masking) |
Maximum Board Size(L x W)
Material | Value |
---|---|
FR4 | 430 x 585 mm |
Roger | 435 x 275 mm |
Circuit Layers (All values are in mm)
Specification | Minimum Track Width | Minimum Spacing |
---|---|---|
For Start Copper Thickness of 0.5 Oz. For Outer Layer | 0.1 | 0.1 |
For Start Copper Thickness of 1.0 Oz. | 0.1 | 0.1 |
For Start Copper Thickness of 2.0 Oz. | 0.175 | 0.2 |
Base Materials
Specification | Value |
---|---|
Base Material | FR4 |
Max. Cu Wt. For Planes (Oz.) | 2 |
Max. Cu Wt. For Signals (Oz.) | 2 |
Min. Cu Wt. (Oz.) | 0.5 |
Drilling (All values are in mm)
Specification | Value |
---|---|
Minimum Finished via Hole Size | 0.1 |
Minimum via Pad Size | |
Outer Layers | 0.4 |
Inner Layers | 0.4 |
Minimum Annular Ring | 0.1 |
Drill to Drill Clearance | 0.15 |
Minimum Slot Size For PTH Slots (Tool size) | 0.5 |
Blind & Buried vias Manufacturable | Yes |
Drill to Track Clearance For Inner Layers (upto 6 layer) | 0.2 |
Drill to Track Clearance for Inner Layers (>6 layer) | 0.2 |
Minimum Drill Size For Plated Holes on Board Edge | 0.6 |
Minimum Drill to Drill Clearance For Plated Holes on Board Edge | 0.2 |
Surface Finish
- HASL, HASL PB Free
- Immersion Gold/Tin/Silver
- Gold Finger Plating
- OSP, Immersion Gold + OSP
Special Processing
- Buried And blind vias
- Via In Pad
- Impedance control
- stepped golden
- golden fingers
Solder Mask Colours
- Green
- Black
- White
- Blue
- Red
- Other Services
PCB Design
- Component Library creation as per IPC standard
- Layout design of Multi Layer PCBs up to 16 Layers
CAM Work
- Gerber file format conversion from RS274D to RS274X
- Entire Gerber Database validation for manufacturability
PCB Assembly
- Elevate your electronics with our premium PCB assembly services : precision, reliability, and expertise merged into every circuit.
- PCB Assembly for SMT components, Through Hole components and Hand Soldering.
